MASTIA HVLS FAN
Huge Industrial | Advanced PMSM Technology
The Syclones Mastia HVLS Fan is a proven, reliable series trusted by facilities worldwide. Featuring advanced Outer-Rotor Permanent Magnet Synchronous Motor (PMSM) technology, the Mastia series delivers superior performance compared to traditional gear motor HVLS fans, with the advantages of low noise operation, compact installation footprint, zero maintenance requirements, and extended service life.
Key Advantages:
-
Ultra-quiet operation at 43dBA
-
Zero-maintenance PMSM motor technology
-
Compact design for space efficiency
-
Extended operational lifespan
-
Energy-efficient performance
PMSM MOTOR
The Mastia series utilizes advanced Permanent Magnet Synchronous Motor (PMSM) technology, delivering exceptional performance characteristics:
Key Motor Advantages:
-
High Starting Torque: Rapid acceleration to operating speed
-
Short Starting Time: Immediate response to control inputs
-
High Overload Capacity: Reliable operation under demanding conditions
-
Consistent Performance: Maintains efficiency across speed ranges
Quality Manufacturing: The PMSM motor is manufactured using specialized winding machinery, comprehensive testing equipment, and rigorous quality assurance protocols. This ensures optimal internal motor temperatures and guarantees long-term temperature stability under continuous operation.
ZERO-MAINTENANCE OPERATION
The Mastia PMSM motor eliminates traditional maintenance requirements entirely. Unlike gear motor systems that require regular oil changes and lubrication servicing, the Mastia series operates maintenance-free throughout its service life.
Benefits:
-
No oil changes required
-
No scheduled lubrication maintenance
-
Eliminates potential oil leakage issues
-
Reduces long-term operating costs
-
Minimizes operational downtime
CONTROL SYSTEM
The Mastia control system integrates premium electrical components for reliable, safe operation:
-
Holip Converters (Danfoss Group): Industry-leading motor control technology
-
Schneider Electrical Components: Premium contactors, relays, and protection devices
Features:
-
Radio Interference Suppression: Prevents electromagnetic interference
-
Integrated Braking Function: Controlled deceleration and stopping
-
Transparent Observation Window: Real-time status monitoring without opening enclosure
-
Front Panel Controls:
-
Operational indicator lights
-
Infinite speed adjustment dial
-
Three-speed preset switch
-
Protection:
Ground fault | Over-temperature | Over-current | Under/Over-voltage | Short circuit | Phase loss
Parameter:
Motor Power | Size | Max Speed (RPM) | Air Volume (m³/min) | Voltage / Current | Fan Weight (kg) | Noise (dBA) |
|---|---|---|---|---|---|---|
1.5KW | 24ft (7.3m) | 0-55 | 16000 | 220/380V (4.6A / 2.8A) | 120 | 43 |
1.2KW | 20ft (6.1m) | 0-60 | 15100 | 220/380V (3A / 2.6A) | 108 | 43 |
1.2KW | 18ft (5.5m) | 0-65 | 13800 | 220/380V (2.7A / 2.5A) | 98 | 43 |
1.2KW | 16ft (4.9m) | 0-70 | 12500 | 220/380V (2.6A / 2.4A) | 92 | 43 |
750W | 18ft (5.5m) | 0-65 | 12000 | 220V (2.5A) | 82 | 43 |
750W | 16ft (4.9m) | 0-80 | 11000 | 220V (2.3A) | 75 | 43 |
750W | 14ft (4.2m) | 0-85 | 10000 | 220V (2A) | 72 | 43 |
400W | 14ft (4.2m) | 0-80 | 9500 | 220V (2A) | 68 | 43 |
400W | 12ft (3.6m) | 0-90 | 9000 | 220V (1.8A) | 62 | 43 |
400W | 10ft (3m) | 0-100 | 7500 | 220V (1.7A) | 52 | 43 |
400W | 8ft (2.4m) | 0-120 | 6800 | 220V (1.5A) | 50 | 43 |
Fan Blades
PREMIUM ALUMINUM ALLOY CONSTRUCTION
Material: 6063-T5 Aluminum Alloy
Mastia fan blades are precision-manufactured from 6063-T5 aluminum alloy, selected for its optimal combination of strength, durability, and corrosion resistance.
Material Properties:
Tensile Strength: 215 MPa
Yield Strength: 160 MPa
Elongation: 15%
Brinell Hardness: 60 HB
Shear Strength: 150 MPa
Performance Advantages
High Structural Strength: Suitable for demanding structural applications
Superior Corrosion Resistance: Excellent performance in outdoor and marine environments
Excellent Formability: Precision manufacturing capability
Outstanding Weldability: Reliable fabrication and assembly
Wide Application Range: Suitable for diverse industrial environments
AERODYNAMIC OPTIMIZATION
Blade Element Momentum Theory Design
The Syclones blade profile is engineered using advanced Blade Element Momentum Theory, with extensive iterative design to identify the optimal curve and angle configuration. The proprietary blade geometry is patent-protected and represents years of aerodynamic development.
CFD-Validated Performance
ANSYS FLUENT analysis validated the Syclones blade design against dozens of aerodynamic profiles, confirming 5.7% greater airflow volume compared to alternative geometries under identical operating conditions.
Note: Detailed blade specifications are proprietary. Contact our technical team for application-specific performance projections.
STRUCTURAL ENGINEERING
The Syclones fan blade features specialized internal reinforcement with two connected reinforcement ribs and four independent reinforcement ribs, creating a lightweight structure with enhanced fracture resistance.
Assembly Technology: The E-shaped reinforcement ribs exhibit controlled deformation during assembly. When secured with fasteners, the ribs flex slightly to ensure secure connection between mounting hardware and blade sections while maintaining structural integrity throughout the blade assembly.
SAFETY-ENGINEERED MOUNTING SYSTEM
Beam Connection Assembly
The Syclones mounting system features 8mm thick steel plates with precision bend technology and robotic welding, ensuring complete installation safety and eliminating accident risks through high structural load capacity and fatigue-resistant design.

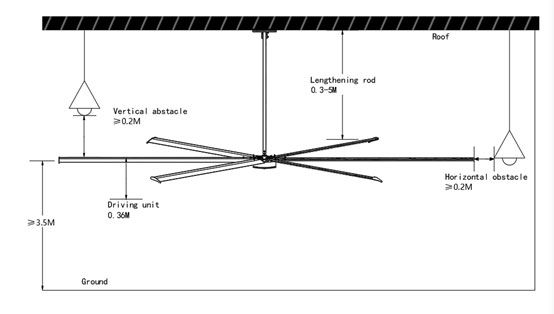

INSTALLATION INFORMATION
Requirements:
-
Minimum Ceiling Height: 4 meters recommended
-
Clearance: Minimum 0.3m above fan, minimum 3m below blade tips
-
Mounting Options: Structural ceiling mount, I-beam mounting with brackets, concrete ceiling with expansion anchors
-
Electrical: Dedicated circuit, proper grounding, voltage 220V or 380V (model dependent)
CFD ANALYSIS SERVICES
Professional Airflow Simulation for Optimal Results
Computational Fluid Dynamics (CFD) Analysis Available
For large-scale projects and VIP clients, Syclones provides comprehensive CFD airflow simulation services to optimize your fan installation for maximum performance and efficiency.
Our CFD Process:
-
Facility Documentation - Provide 3D drawings or detailed measurements of your project space
-
Engineering Analysis - We model your facility and simulate airflow patterns with Syclones fans
-
Optimization - Calculate optimal fan sizing, quantity, and placement locations
-
Performance Projection - Receive detailed analysis showing expected airflow, temperature distribution, and energy efficiency
