VORTURA HVLS + MISTING SYSTEM

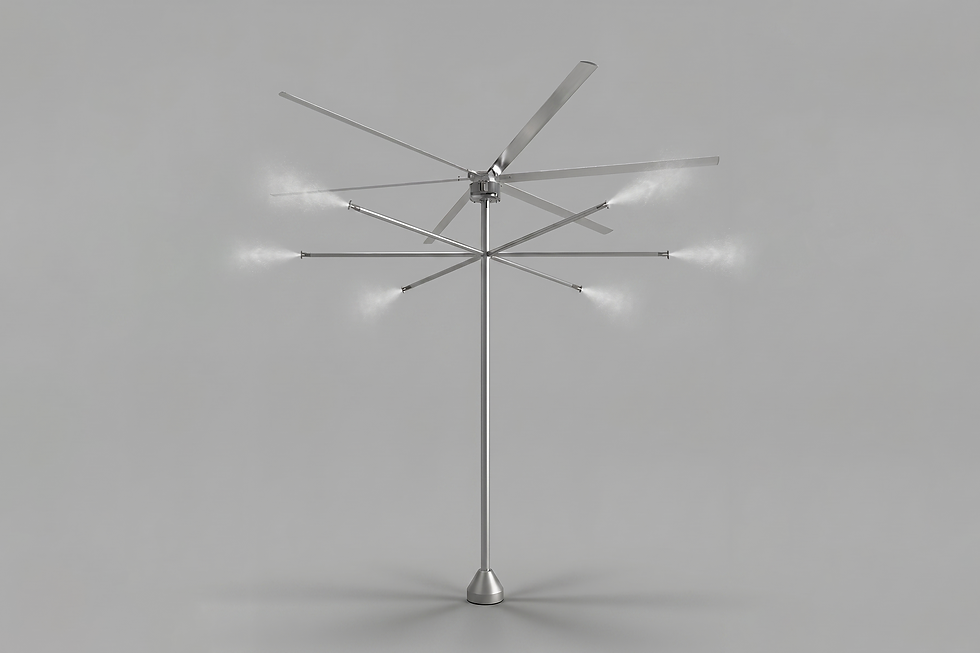

Outdoor Cooling System | Pole-Mounted HVLS Fan with Integrated Misting
The Syclones Vortura is an outdoor cooling system engineered for large open-air environments. Combining a six-blade HVLS fan with an integrated misting pole, it delivers wide-area airflow and active evaporative cooling in a single unit — reducing ambient temperatures and maintaining thermal comfort even during peak outdoor heat. Powerful, quiet, and built for continuous outdoor use.
Key Advantages:
-
Specially designed for outdoor applications
-
Withstands rain and harsh weather conditions
-
High IP grade water-resistant PMSM motor
-
Weather-resistant steel pole with protective coating
-
IP54-rated VFD control system
-
Optional integrated lighting
-
Ultra-quiet operation at 43dBA
HIGH IP GRADE PMSM MOTOR
Outdoor-Rated Water-Resistant Motor
The Vortura features high IP grade PMSM motor specifically designed for outdoor environments, with enhanced water-proof protection, equipped with NSK bearings and magnetic steel temperature resistant to 180°C.
Motor Performance Benefits:
-
Improved operational stability in outdoor conditions
-
Reduced energy consumption and increased efficiency
-
Reduced risk of magnetic steel demagnetization
-
Optimized starting characteristics and commutation performance
-
Improved speed stability
Weather Protection: The high IP grade motor housing provides protection against rain, moisture, and outdoor environmental conditions, ensuring reliable operation in challenging weather.
ALUMINUM ALLOY FAN BLADES
Material: 6063-T5 Aluminum Alloy
Vortura fan blades are manufactured from aluminum alloy 6063-T5, providing excellent corrosion resistance for outdoor applications.
Structural Engineering: The blade structure contains two connected reinforcing ribs and four unconnected reinforcing ribs, making the blades lightweight and more resistant to breakage.
Assembly Technology: When blades are connected to the hub and fastened with nuts and caps, the two E-shaped reinforcing ribs have controlled deformation capacity. When subjected to tightening force from top to bottom, the reinforcing ribs bend slightly, ensuring tight connection between hub and blades while maintaining structural strength.
Outdoor Durability: The 6063-T5 aluminum alloy offers superior corrosion resistance, making it ideal for outdoor and marine environments where exposure to moisture and weather is constant.
WEATHER-RESISTANT STEEL POLE
Heavy-Duty Steel Construction with Protective Coating
The Vortura mounting pole features robust steel construction designed to withstand outdoor conditions.
Pole Specifications:
-
Steel construction with 90 tube specification
-
Special protective paint coating
-
Rust-resistant treatment
-
Weather-proof finish
Optional Integrated Lighting: The pole design can accommodate integrated lighting fixtures according to your specific requirements, providing both air circulation and illumination in outdoor spaces.
Durability Features:
-
Corrosion-resistant protective coating
-
Heavy-gauge steel construction
-
Long-term structural integrity in outdoor environments
-
Minimal maintenance requirements
IP54 VFD CONTROL SYSTEM
Weather-Protected Variable Frequency Drive
The Vortura control system features IP54 protection level, providing dust and water spray resistance suitable for outdoor installations.
Control Features:
-
Start/stop button operation
-
Stepless speed regulation knob for infinite speed adjustment
-
Operational indicator light
-
Weather-resistant control housing
Comprehensive Protection: Multi-layer protection system including overload protection, voltage shock protection, phase loss protection, and additional safety functions ensuring reliable outdoor operation.
User-Friendly Operation: Simple, intuitive controls allow easy operation and speed adjustment for varying outdoor conditions and ventilation requirements.
TECHNICAL SPECS:
Specification | Value |
|---|---|
Model | CTPM-400-3.6 |
Motor Power | 0.4 KW |
Size | 2.8m-3m |
Max Speed | 0-90 |
Air Volume | 9000 m³/min |
Current | 220V/1.8A |
Fan Weight | 91 kgs |
Noise | 43 dBA |
NOZZLE PARAMETERS:
Specification | Value |
|---|---|
Diameter | 0.4 mm |
Water Pressure | 2-3 kg |
Water Consumption | 2-5 L/ hour per nozzle |
Spray Range | 0.5 - 1 m |
OUTDOOR APPLICATIONS & WEATHER RESISTANCE
Designed for Outdoor Environments
Weather Capabilities:
The Vortura is engineered to operate reliably in outdoor conditions including:
-
Rain and moisture exposure
-
Temperature fluctuations
-
Dust and airborne particles
-
UV radiation exposure
-
Coastal and marine environments
