STARK WALL FAN
Wall Fan | Space-Efficient Wall Mounting
The Syclones Stark is a wall-mounted oscillating industrial fan designed for facilities where floor space is at a premium and ceiling installation isn't an option. Featuring full 180° horizontal auto-oscillation with IPX5 water protection, the Stark delivers high-volume airflow across wide coverage areas — automatically sweeping left to right to distribute air evenly without repositioning. Available in 2m and 1.5m configurations, the Stark performs reliably in washdown environments, semi-outdoor spaces, and high-humidity facilities where standard wall fans fail.
Key Advantages:
-
Full 180° automatic horizontal oscillation
-
IPX5 water protection rating
-
Ultra-quiet operation at 38 dBA
-
Zero-maintenance PMSM motor technology
-
Two size options: 2m and 1.5m diameter
-
Up to 82,000 m³/h air volume
-
Coverage up to 280 m²
HIGH IP GRADE PMSM MOTOR
Water-Resistant High-Performance Motor
The Stark Wall Fan features high IP grade PMSM motor with enhanced water-proof protection, equipped with NSK bearings and magnetic steel temperature resistant to 180°C.
Motor Performance Benefits:
-
Improved operational stability
-
Reduced energy consumption and increased efficiency
-
Reduced risk of magnetic steel demagnetization
-
Optimized starting characteristics and commutation performance
-
Improved speed stability
Engineering Quality: NSK bearing technology ensures smooth, reliable operation with extended service life and minimal maintenance requirements.

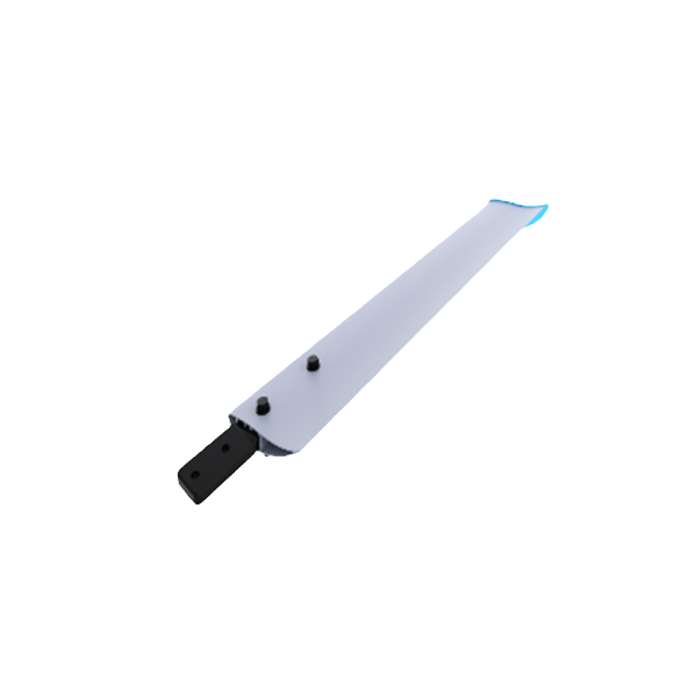

ALUMINUM ALLOY FAN BLADES
Material: 6063-T5 Aluminum Alloy
Stark Wall fan blades are manufactured from aluminum alloy 6063-T5 with specialized reinforcement design.
Structural Engineering: The blade structure contains two connected reinforcing ribs and four unconnected reinforcing ribs, making the blades lightweight and more resistant to breakage.
Assembly Technology: When blades are connected to the hub and fastened with nuts and caps, the two E-shaped reinforcing ribs have controlled deformation capacity. When subjected to tightening force from top to bottom, the reinforcing ribs bend slightly, ensuring tight connection between hub and blades while maintaining structural strength.
Reinforced Steel Base
The Stark's mounting structure is engineered for permanent wall installation in demanding industrial environments.
Construction Details:
-
Laser-Cut Steel Structure: Precision-cut for exact tolerances and consistent quality across every unit
-
Reinforced Support Frame: Additional structural reinforcement at all load-bearing connection points
-
Fully Welded Joints: All joints are fully welded — no bolted connections that could loosen over time
-
Electro-Galvanized Surface: Permanent rust protection that withstands humid, corrosive, and coastal environments — the surface will never rust
-
Airflow Heat Dissipation Design: An industry-unique design feature that channels air across the motor housing during operation, preventing overheating during continuous duty cycles

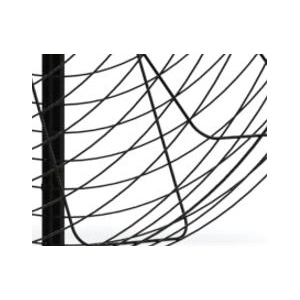

Strong Iron Frame
The Stark fan assembly is enclosed in a robust iron frame with special anti-rust spray coating:
-
Physical Protection: Guards fan blades and motor from impact damage in busy environments ➕ expanded
-
Corrosion Resistance: Special coating resists rust in high-humidity and semi-outdoor conditions
-
Structural Integrity: Adds rigidity, reducing vibration transfer to the wall mounting ➕ expanded
Parameter:
Motor Power | Size | Max Speed (RPM) | Air Volume (m³/h) | Coverage Area (m³) | Fan Weight (kg) | Noise (dBA) |
|---|---|---|---|---|---|---|
750W | 2m | 280 | 82000 | 280 | 100 | 38 |
750W | 1.5m | 380 | 55000 | 200 | 93 | 38 |
